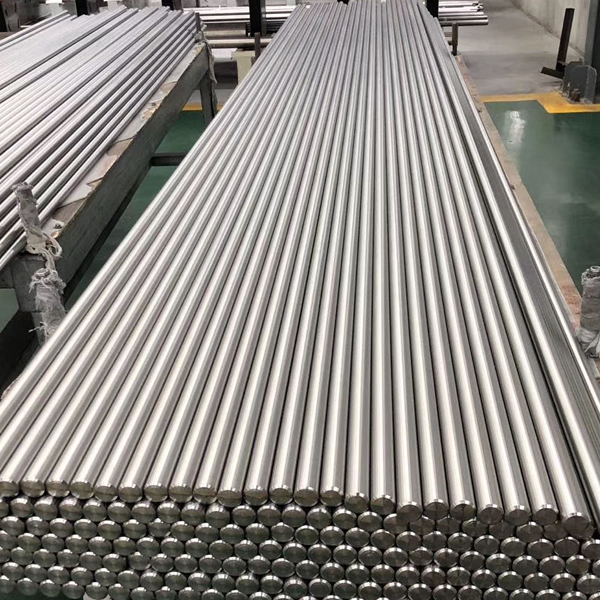

Medical Titanium and Titanium alloy Bar and Rod

1.Titanium Bar and Rod for Neurosurgery Implants Kirschner Bar and Rod and For X-ray Photography;
2.Size: Φ7mm~Φ230mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

1. TitaniumRodfor Neurosurgery Implants KirschnerRod

Specification (mm)	Φ7mm~Φ230mm
Length (mm)	1000~3000
Standards:	GB/T13810, ASTM F136, ISO5823-3, ASTM F1295, ISO5832-11
Titanium Grade	Gr5, Ti6Al4V, Ti6Al7Nb
Surface Finish	Polished;
Tolerance (mm)	-/+0.01
Feature:	Superior corrosion resistance, high elasticity, high tensile strength

Standard	Grade	Chemical Composition
		Major Composition				Impurity（≤%）					Residual Elements
		Ti	Al	V	Nb	Fe	C	N	H	O	Single
GB/T13810	TA1	Balance	/	/	/	0.2	0.08	0.03	0.015	0.18	0.1
	TA2	Balance	/	/	/	0.3	0.08	0.03	0.015	0.25	0.1
	TA3	Balance	/	/	/	0.3	0.08	0.05	0.015	0.35	0.1
	TA4	Balance	/	/	/	0.5	0.08	0.05	0.015	0.4	0.1
	TC4	Balance	5.5~6.75	3.5~4.5	/	0.3	0.08	0.05	0.015	0.2	0.1
	TC4ELI	Balance	5.5~6.75	3.5~4.5	/	0.25	0.08	0.03	0.012	0.13	0.1
GB/T23102	Ti6Al7Nb	Balance	5.5~6. 5	/	6.5~7.5	0.25	0.08	0.05	0.009	0.2	Ta≤0.50
ASTM	Ti6Al7Nb	Balance	5.5~6. 5	/	6.5~7.5	0.25	0.08	0.05	0.009	0.2	Ta≤0.50
ASTM F136	Ti6Al4VELI	Balance	5.5~6.75	3.5~4.5	/	0.25	0.08	0.05	0.012	0.13	0.1
ASTM F67	Grade1	Balance	/			0.2	0.08	0.03	0.015	0.18	0.1
	Grade2	Balance	/			0.3	0.08	0.03	0.015	0.25	0.1
	Grade3	Balance	/			0.3	0.08	0.05	0.015	0.35	0.1
	Grade4	Balance	/			0.5	0.08	0.05	0.015	0.4	0.1
ISO5832-2:1999	Grade 1 ELI	Balance	/			0.1	0.03	0.012	0.012	0.1	/
	Grade 1	Balance	/			0.2	0.1	0.03	0.012	0.18	/
	Grade 2	Balance	/			0.3	0.1	0.03	0.012	0.25	/
	Grade 3	Balance	/			0.3	0.1	0.05	0.012	0.35	/
	Grade4&4B	Balance	/			0.5	0.1	0.05	0.012	0.4	/
ISO5832-3:1996	Ti6Al4V	Balance	5.5~6.75	3.5~4.5	/	0.3	0.08	0.05	0.015	0.2	/
ISO5832-11	Ti6Al7Nb	Balance	5.5~6. 5	/	6.5~7.5	0.25	0.08	0.05	0.009	0.2	Ta-

Standard	Titanium Grade	Diameter (mm)	Tensile Strength (Rm/Mpa)	Yield Strength (Rp0.2/Mpa)	Elongation A%	Reduction Of Area%
GB/T13810	TA1ELI	＞7~90	≥200	≥140	≥30	≥30
	TA1		≥240	≥170	≥24	≥30
	TA2		≥400	≥275	≥20	≥30
	TA3		≥500	≥380	≥18	≥30
	TA4		≥580	≥485	≥15	≥25
	TC4	＞7~90	≥930	≥860	≥10	≥25
	TC4	＞50~90	≥859	≥830	≥10	≥25
	TC4ELI	＞7~45	≥860	≥795	≥10	≥25
		＞45~65	≥825	≥760	≥8	≥20
		＞65~90	≥825	≥760	≥8	≥15
	TC20	＞7~100	≥900	≥800	≥10	≥25
GB/T23102	Ti6Al7Nb	≤10	≥900	≥800	≥10	≥25
ASTM	Ti6Al7Nb	≤101.6	≥900	≥800	≥10	≥25
ASTM F136	Ti6Al4VELI	＜44.45	≥860	≥795	≥10	≥25
ASTM F67	Grade1	＜25	≥240	≥170	≥24	≥30
	Grade2	＜25	≥400	≥275	≥20	≥30
	Grade3	＜25	≥500	≥380	≥18	≥30
	Grade4	＜25	≥580	≥485	≥15	≥25
ISO5832-2:1999	Grade 1 ELI	/	≥200	≥140	≥30	/
	Grade 1		≥240	≥170	≥24
	Grade 2		≥345	≥275	≥20
	Grade 3		≥450	≥380	≥18
	Grade4A		≥550	≥483	≥15
	Grade4B		≥680	≥520	≥10
ISO5832-3:1996	Ti6Al4V	≤75	≥860	≥780	≥10
ISO5832-	Ti6Al7Nb	≤100	≥900	≥800	≥10	≥25
