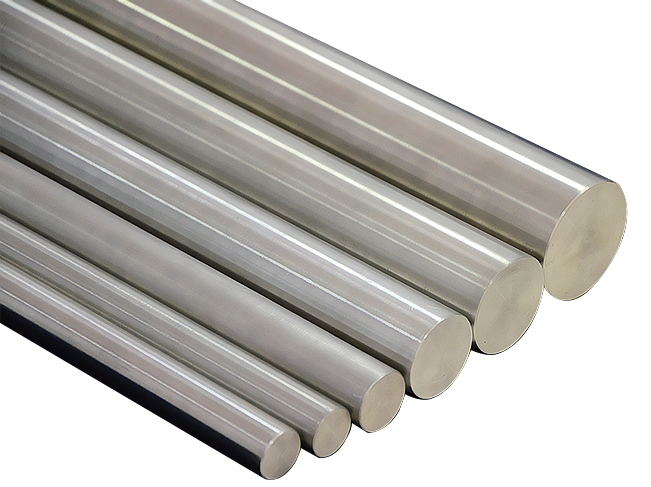

Titanium alloy Grade 7 Ti-0.2Pd Bar and Rod

1.Titanium Alloy Grade 7 with 0.1% palladium is similar to Grade 2, but with improved resistance to general and localized crevice corrosion in a wide range of reducing acid environments, including chlorides, and where low pH and high temperatures above 180ºF (83ºC) to 500ºF (260ºC) are prevalent.
2.Size: Φ7mm~Φ230mm;
Products Inquiry

Product Details

Titanium Alloy Grade 7 with 0.1% palladium is similar to Grade 2, but with improved resistance to general and localized crevice corrosion in a wide range of reducing acid environments, including chlorides, and where low pH and high temperatures above 180ºF (83ºC) to 500ºF (260ºC) are prevalent.

Standard Specification: ASTM B348, ASME SB348, ISO, DINAWS A5.16 (ERTi-7);



Standard

Werkstoff No.

UNS

Titanium Alloy Grade7 Ti-0.2Pd

3.7235

R52400



Technical Data Sheet

Chemical Composition

Weight %

Ti

Pd

C

Fe

N

O

H

Titanium Alloy Grade7 Ti-0.2Pd

Balance

0.12~0.25

0.08

0.3

0.03

0.25

0.015



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Alloy Grade7 Ti-0.2Pd

50

345

40

275

20

30
