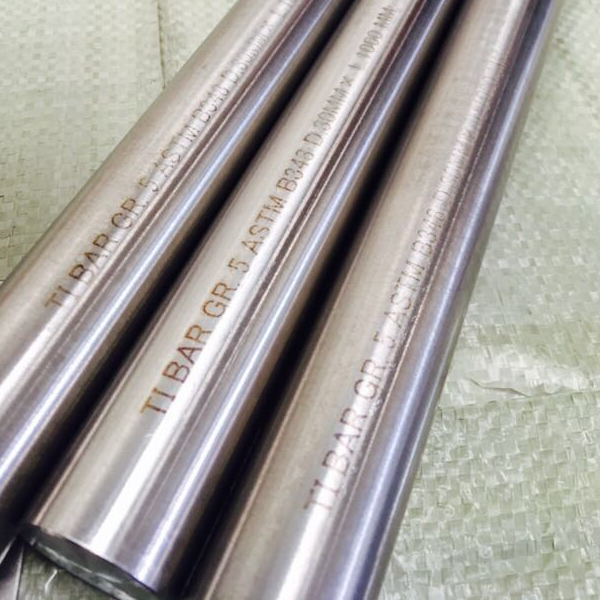

Titanium Alloy Grade5 Ti-6Al-4V Bar and Rod

1. Ti-6Al-4V alloy is the most widely used titanium alloy of the alpha-plus-beta class, and is also the most common of all titanium alloys.
2.The alloy is castable and is utilized "as cast" in sporting goods. The wrought material is used in aerospace,medical, and other applications where moderate strength, good strength to weight,and favorable corrosion properties are required.
3.Size: Φ7mm~Φ230mm;
Products Inquiry

Product Details

Titanium Alloy Grade5 Ti-6Al-4V Ti-6Al-4V alloy is the most widely used titanium alloy of the alpha-plus-beta class,and is also the most common of all titanium alloys. The alloy is castable and is utilized "as cast" in sporting goods. The wrought material is used in aerospace, medical, and other applications where moderate strength, good strength to weight,and favorable corrosion properties are required.



Standard Specification: ASTM B863, ASME SB863, ASTM F136, ISO, DINAMS-T-9046 CP4 / AMS 4940;



Standard

Werkstoff No.

UNS

Titanium Alloy Grade5 Ti-6Al-4V

3.7165

R56400







Technical Data Sheet

Chemical Composition

Weight %

Ti

Al

V

C

Fe

N

O

H

Titanium Alloy Grade5 Ti-6Al-4V

Balance

5.5~6.75

3.5~4.5

0.08

0.4

0.05

0.2

0.015



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Alloy Grade5 Ti-6Al-4V

130

895

120

828

10

25
