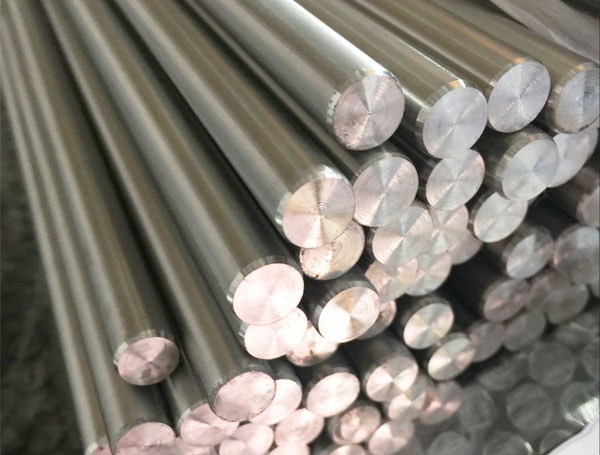

Commercial Pure Titanium Grade 4 Bar and Rod

1.Titanium Alloy Grade 4 is “unalloyed” titanium offering improved strength, moderate ductility. The material is readily weldable.
2.This material is very corrosion resistant in highly oxidizing and mildly reducing environments.
3.Size: Φ7mm~Φ230mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Titanium Alloy Grade4 is “unalloyed” titanium offering optimum ductility and cold formability. The material has high impact toughness and is readily weldable. The material is capable of deep drawing.

Standard Specification: ASTM B348, ASME SB348, ASTM F67 Surgical Implant , ISO, DINAMS-T-9046B CP1,AMS-T-9047A CP70,AMS 4901,AMS 4921 MIL-T-9046J CP1,MIL-T-9047G CP70

Standard	Werkstoff No.	UNS
Commercial Pure Titanium Grade4	3.7065	R50700

Technical Data Sheet

Chemical Composition
Weight %	Ti	C	Fe	N	O	H
Commercial Pure Titanium Grade4	Balance	0.08	0.5	0.05	0.4	0.015

Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Commercial Pure Titanium Grade4

550

483
