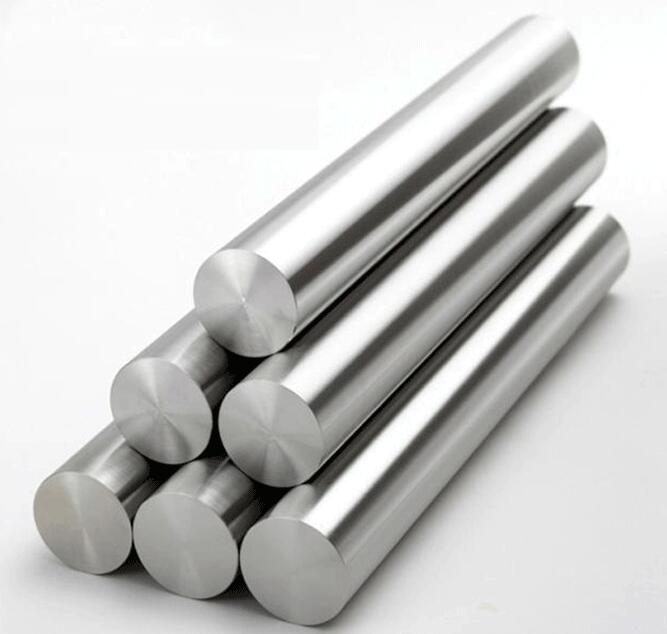

Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni Bar and Rod

1.Titanium Alloy Grade 12 is lightly alloyed near-alpha alloy offering improved strength at elevated temperatures and optimum ASME Code design allowables. The material is readily weldable, and has superior crevice corrosion resistance.
2.This material is very corrosion resistant in highly oxidizing and mildly reducing environments.
3.Size: Φ7mm~Φ230mm;
Products Inquiry

Product Details

Titanium Alloy Grade 12 is lightly alloyed near-alpha alloy offering improved strength at elevated temperatures and optimum ASME Code design allowables. The material is readily weldable, and has superior crevice corrosion resistance. This material is very corrosion resistant in highly oxidizing and mildly reducing environments.



Standard Specification: ASTM B348, ASME SB348，ISO, DINAWS A5.16 (ERTi-12);



Standard

Werkstoff No.

UNS

Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni

3.7105

R53400



Technical Data Sheet

Chemical Composition

Weight %

Ti

C

Fe

N

O

H

Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni

Balance

0.08

0.3

0.03

0.25

0.015



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Alloy Grade 12 Ti-0.3Mo-0.8Ni

70

483

50

345

18

25
