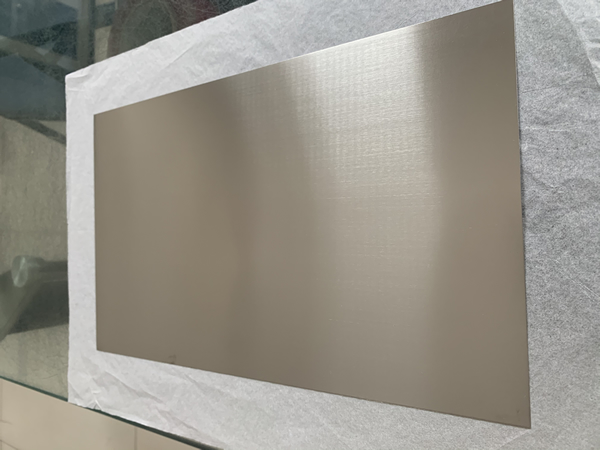

Commercial Pure Titanium Grade4

Titanium Alloy Grade 4 is “unalloyed” titanium offering improved strength, moderate ductility. The material is readily weldable. This material is very corrosion resistant in highly oxidizing and mildly reducing environments.
Size: Thickness0.01mm~0.1mm×Width10mm~600mm×Coil mm;
Products Inquiry

Product Details

Titanium Alloy Grade4 is “unalloyed” titanium offering optimum ductility and cold formability. The material has high impact toughness and is readily weldable. The material is capable of deep drawing.

Standard Specification: ASTM B265 , ASME SB265, ASTM F67, AMS-T-9046B CP4 AMS 4940 MIL-T-9046J CP4

Standard

Werkstoff No.

UNS

Commercial Pure Titanium Grade4

3.7065

R50700







Technical Data Sheet

Chemical Composition

Weight %

Ti

C

Fe

N

O

H

Commercial Pure Titanium Grade4

Balance

0.08

0.5

0.05

0.4

0.015



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Commercial Pure Titanium Grade4

80

550

70

483

15

25
