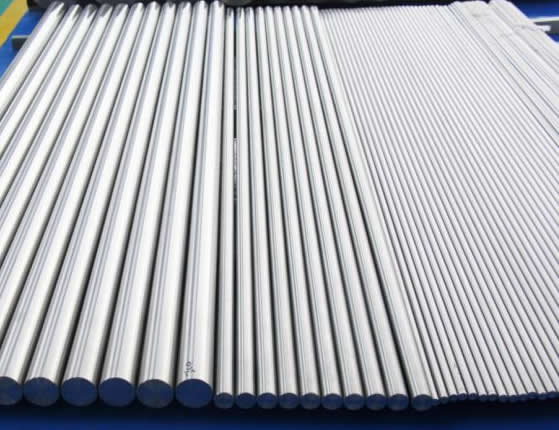

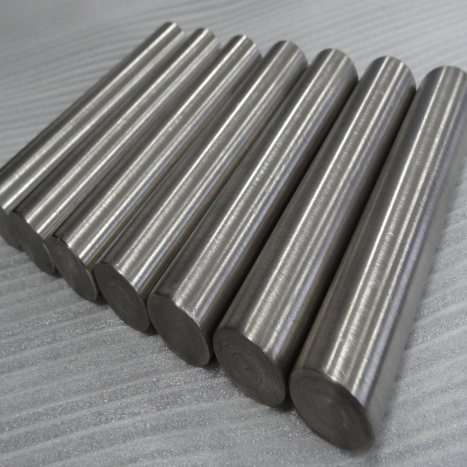

AMS Titanium Alloy Grade 6 (Ti-5Al-2.5Sn) Bar and Rod

1.Titanium Ti5Al2.5Sn (Grade 6) is a high strength alloy which is most commonly used in airframe and jet engine applications. Titanium Ti5Al2.5Sn (Grade 6) has good weldability, stability and strength at elevated temperatures.
2.Size: Φ7mm~Φ230mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Titanium Ti5Al2.5Sn (Grade 6) is a high strength alloy which is most commonly used in airframe and jet engine applications. Titanium Ti5Al2.5Sn (Grade 6) has good weldability, stability and strength at elevated temperatures.

Standard Specification:

AMS 4924 Bars, Forgings, Ring (EL1 grade)

AMS 4926 Bar, Wire, Ring (Annealed - 110 ksi)

AMS 4966 Forgings

AMS 6900 Bars;

AMS-T- 9047 5Al-2.5Sn Bar;

MIL-T-9047G Bar;

Standard	Werkstoff No.	UNS
Titanium Alloy Grade 6 / Ti-5Al-2.5Sn	3.7114	R54520

Technical Data Sheet

Chemical Composition
Weight %	Ti	Al	Sn	C	Fe	N	O	H	Other
Titanium Alloy Grade 6 / Ti-5Al-2.5Sn	Balance	4.0~6.0	2.0~3.0	0.1	0.05	0.05	0.2	0.020	0.4 Total Max.

Typical Mechanical Properties (Tensile Requirements)

Material	Tensile Strength, min		Yield Strength (0.2% Offset) min or range		Elongation in 4D,min%
Material	ksi	MPa	ksi	MPa	Elongation in 4D,min%
Titanium Alloy Grade 6 / Ti-5Al-2.5Sn	120	830	115	795	10
