Titanium U-Tube For Heat Exchanger

Type: Titanium Pipes
Application: Industrial, Heat Exchanger
Technique: Cold Rolled
Shape: Round;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

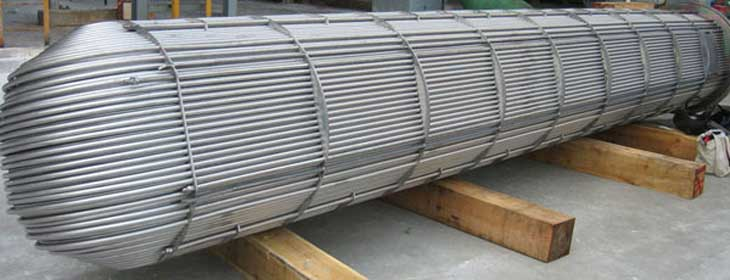

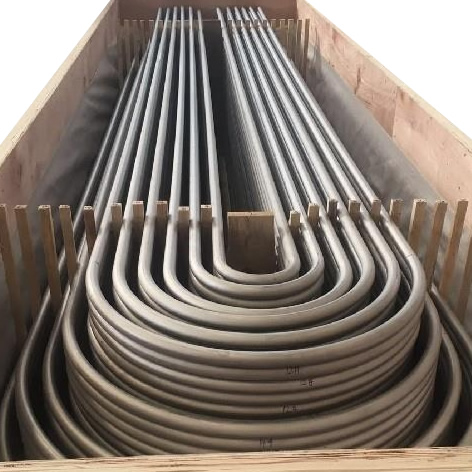

GOOLEETitanium Heat Exchanger U Tube Style With Solid Titanium Tube sheet And Titanium Shell. titanium heat exchanger is a heat-transfer device, made of titanium or its alloys, that is used for the transfer of internal thermal energy between two or more corrosive fluids. Titanium Heat Exchanger U Tube manufactured to ASTM B338/ ASME SB-338 are widely applied for the fabrication of tubular heat exchangers.

The tubular heat exchanger mainly covers double-pipe heat exchanger, shell and tube heat exchanger, and coiled tube heat exchanger. The Titanium Heat Exchanger U Tube can be furnished in either seamless or welded style.

The size of the U-shaped part can be customized according to customers.

GOLEE canprovide all kinds ofTitanium Heat Exchanger U Tube :

Outer DiameterΦ (mm)	Wall Thickness (mm)	Length (mm)
Φ10.0	1.0	3000mm~9000mm
Φ12.7	1.0	3000mm~9000mm
Φ12.7	1.5	3000mm~9000mm
Φ19.05	0.7	3000mm~9000mm
Φ19.05	0.9	3000mm~9000mm
Φ25.4	1.2	3000mm~9000mm
Φ25.4	1.5	3000mm~9000mm
Φ25.4	2.0	3000mm~9000mm
Φ31.75	1.5	3000mm~9000mm
Φ31.75	2.0	3000mm~9000mm
Φ31.75	3.0	3000mm~9000mm
Φ38.1	1.6	3000mm~9000mm
Φ38.1	2.0	3000mm~9000mm
Φ38.1	2.5	3000mm~9000mm
Φ50.8	1.6	3000mm~9000mm
Φ50.8	2.0	3000mm~9000mm
Φ50.8	2.5	3000mm~9000mm
