Titanium Thread tubes and pipes

Standard: ASTM B338, ASTM B861, ASTM B862
Size: OD(10mm~114mm)×Thickness0.4~10mm×Length (100~15000)mm
Manufacturing method: Cold rolled and processing;
Condition: Annealed(M);

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

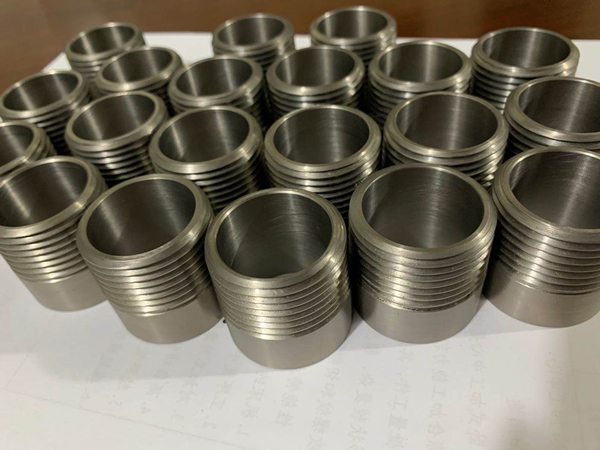

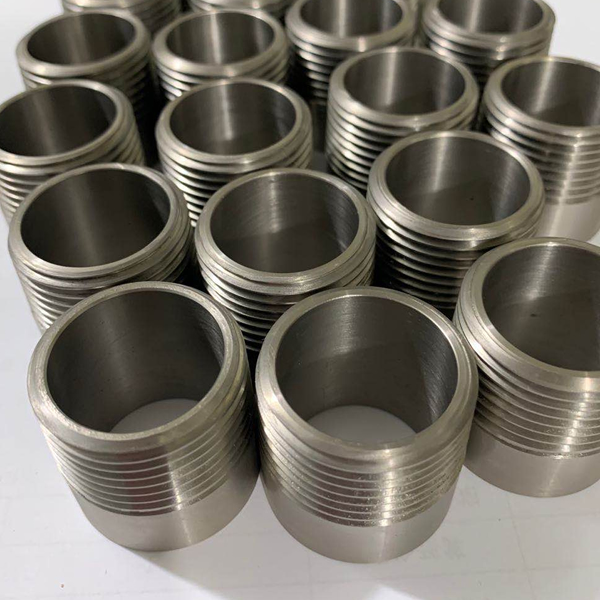

GOOLEE can provide inner thread and outer thread tubes and pipes:

Standard	Werkstoff No.	UNS
Commercial Pure Titanium Grade1	3.7025	R50250
Commercial Pure Titanium Grade2	3.7035	R50400
Titanium Alloy Grade7	3.7235	R52400
Titanium Alloy Grade9	3.7195	R56320
Titanium Alloy Grade12	3.7105	R53400

Technical Data Sheet

Chemical Composition

Weight %

Commercial Pure Titanium Grade1

Balance

0.08

0.2

0.03

0.15

0.015

Commercial Pure Titanium Grade2

Balance

0.08

0.3

0.03

0.25

0.015

Titanium Alloy Grade7

Balance

0.2

0.08

0.3

0.03

0.25

0.015

Titanium Alloy Grade9

Balance

2.5~3.5

2~3

0.08

0.25

0.03

0.15

0.015

Titanium Alloy Grade12

Balance

0.2~0.4

0.6~0.9

0.08

0.3

0.03

0.25

0.015

Typical Mechanical Properties (Tensile Requirements)

Material	Tensile Strength, min		Yield Strength (0.2% Offset) min or range		Elongation in 4D,min%	Reduction of Area Min %
Material	ksi	MPa	ksi	MPa	Elongation in 4D,min%	Reduction of Area Min %
Commercial Pure Titanium Grade1	35	240	20	138	24	30
Commercial Pure Titanium Grade2	50	345	40	275	20	30
Titanium Alloy Grade7	50	345	40	275	20	30
Titanium Alloy Grade9	50	345	40	275	20	30
Titanium Alloy Grade12	50	345	40	275	20	30

Seamless titanium Tubes and Pipes

GOOLEE titanium seamlesstubes and pipes are widely used in condensers, heat exchangers, aerospace fuel pipes, bicycles, golf carts and motorcycles, etc. Products

Welded Titanium Tube and Pipes

GOOLEE titaniumwelded tubes and pipes are widely used in condensers, heat exchangers, 1.Outer Diameter10mm~114mm×Wall Thickness0.5mm~2mm×Length25000mm; 2.Material: Titanium Grade1, 2, 12 Standar

Titanium Grade5 pipes for large outer diameter and thick wall oil and marine

Titanium Alloy Grade5 Ti-6Al-4V Ti-6Al-4V alloy is the most widely used titanium alloy of the alpha-plus-beta class,and is also the most common of all titanium alloys. The alloy is castable and is&nb

Titanium tubes for Aerospace and Airplane

Listed in the following table are some of the common sizes produced for major aircraft companies. Sizes other than those shown can be produced depending on the quantity required. SEAMLESS T
