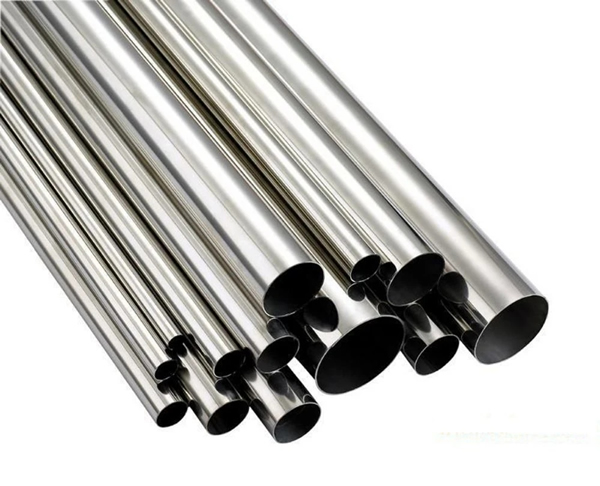

Titanium alloy Grade 9 Ti-3Al-2.5V Tubes and Pipes

1.Ti-3Al-2.5V alloy is an alpha alloy that is strengthened by cold working. The material exhibits good ductility and toughness.
2.Size: Size: Outer Diameter6mm~50.8mm×Wall Thickness0.7mm~3mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Titanium Alloy Grade9 Ti-3Al-2.5V alloy is an alpha alloy that is strengthened by cold working. The material exhibits good ductility and toughness. It is used in a wide range of tubular products from aircraft ducting to golf club shafts and bicycle frames. The alloy is available as wire, bar, sheet, seamless and welded tubing. ASME code approved.

Standard Specification: ASTM B338, ASTM B861, ASTM B862, AMS 4944, 4945

Standard	Werkstoff No.	UNS
Titanium Alloy Grade9 Ti-3Al-2.5V	3.7195	R56320

Technical Data Sheet

Chemical Composition
Weight %	Ti	Al	V	C	Fe	N	O	H
Titanium Alloy Grade9 Ti-3Al-2.5V	Balance	2.5~3.5	2.0~3.0	0.08	0.25	0.03	0.15	0.015

Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Alloy Grade9 Ti-3Al-2.5V

620

483
