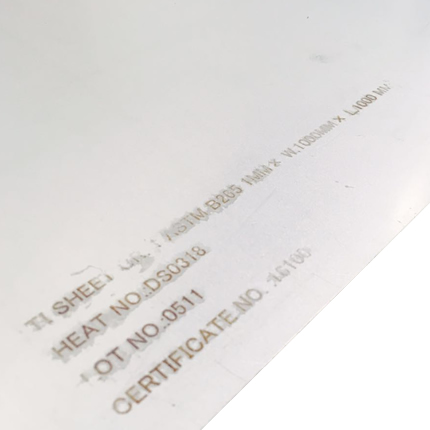

Commercial Pure Titanium Grade 1 Sheet and Plate

1.Titanium Alloy Grade 1 is “unalloyed” titanium offering optimum ductility and cold formability.
2.The material has high impact toughness and is readily weldable.
3.Size: Thickness0.3~60mm×Width400~3000mm×Length1000~6000mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Titanium Alloy Grade 1 is “unalloyed” titanium offering optimum ductility and cold formability. The material has high impact toughness and is readily weldable. The material is capable of deep drawing.

Standard Specification: ASTM B265 , ASME SB265, ASTM F67, AMS-T-9046B CP4 AMS 4940 MIL-T-9046J CP4;

Standard	Werkstoff No.	UNS
Commercial Pure Titanium Grade1	3.7025	R50250

Technical Data Sheet

Chemical Composition
Weight %	Ti	C	Fe	N	O	H
Titanium CP Grade 1	Balance	0.08	0.02	0.03	0.15	0.015

Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Grade 1

240

138
