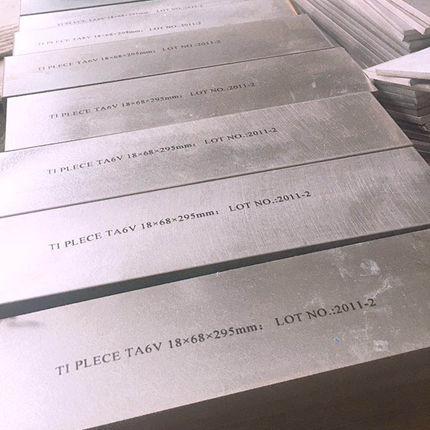

Titanium Alloy Grade5 Ti-6Al-4V Sheet and Plate

1.Ti-6Al-4V alloy is the most widely used titanium alloy of the alpha-plus-beta class, and is also the most common of all titanium alloys.
2.The alloy is castable and is utilized "as cast" in sporting goods. The wrought material is used in aerospace,medical, and other applications where moderate strength, good strength to weight,and favorable corrosion properties are required.
3.Size: Thickness0.3~60mm×Width400~3000mm×Length1000~6000mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Titanium Alloy Grade5 Ti-6Al-4V alloy is the most widely used titanium alloy of the alpha-plus-beta class, and is also the most common of all titanium alloys. The alloy is castable and is utilized "as cast" in sporting goods. The wrought material is used in aerospace, medical, and other applications where moderate strength, good strength to weight, and favorable corrosion properties are required.

Standard Specification: ASTM B265, ASME SB265, ASTM F136, ISO, AMS 4911;

Standard	Werkstoff No.	UNS
Titanium Alloy Grade5 Ti-6Al-4V	3.7165	R56400

Technical Data Sheet

Chemical Composition
Weight %	Ti	Al	V	C	Fe	N	O	H
Titanium Alloy Grade5 Ti-6Al-4V	Balance	5.5~6.75	3.5~4.5	0.08	0.4	0.05	0.2	0.015

Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Alloy Grade5 Ti-6Al-4V

130

895

120

828
