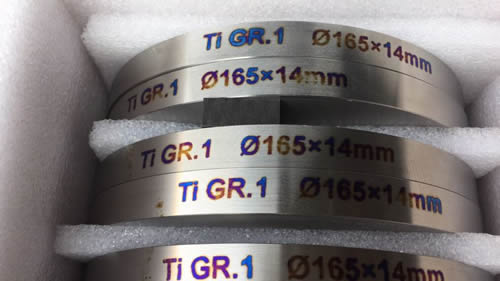

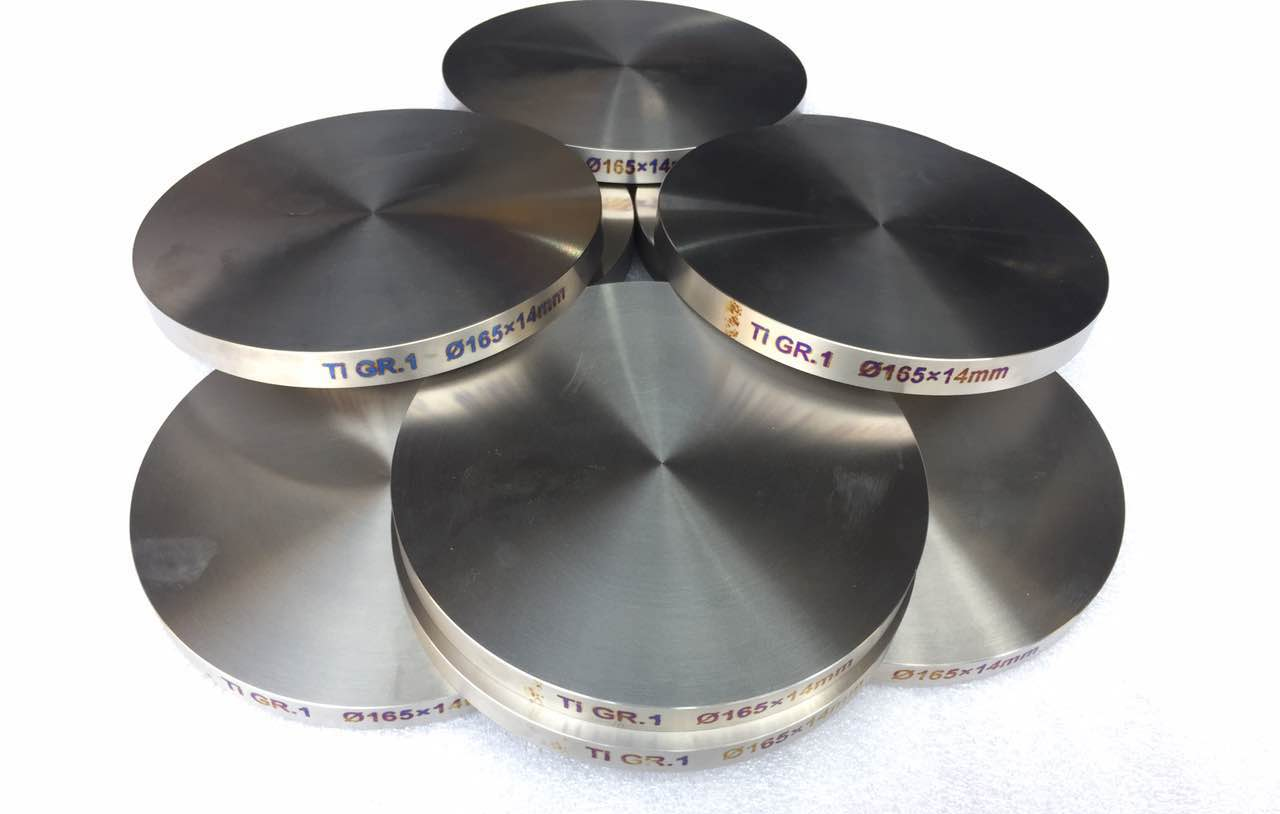

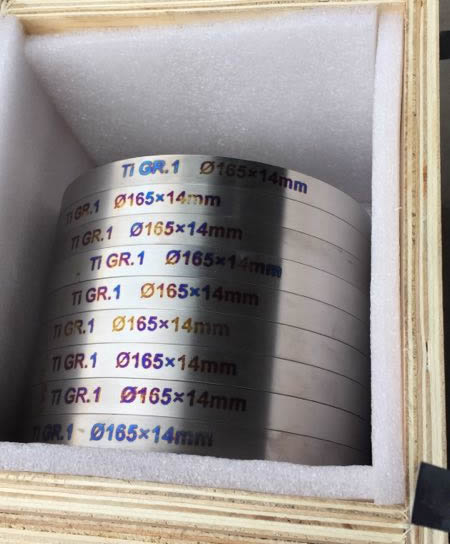

Titanium Forging Disc

Standard

ASTM B381, ASME SB381

Titanium Grade

Titanium Grade1,Grade2,Grade3,Grade4,Grade5,Grade7,Grade12 Grade5ELI (Grade23)

Dimension

Thickness (1mm-500mm) × Outside diameter (max.600mm) DN10--DN2000

surface condition

Surface quality: The surface roughness Ra of the two end surfaces should not be greater than 3.2lμm (which meets the requirements of ultrasonic inspection), and the surface roughness Ra of the inner and outer sides should not be greater than 12.5μm (when ultrasonic inspection is required on the outer circumferential surface Ra should not be greater than 3.2 μm), and the chamfer radius is 5 to 15 mm. Surface finish: clean, dust-free, better acid-resistant life.

Types

Testing: mechanical properties, chemical composition testing, ultrasonic testing.

Application

1. Electroplating;

2. Chemical engineering & Petrochemical technology;

3. Medical: titanium alloy (Ti6Al4V-ELI F136) and cp titanium (Ti Gr.2 F67) for implants

4.Use in semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) display and optical applications
