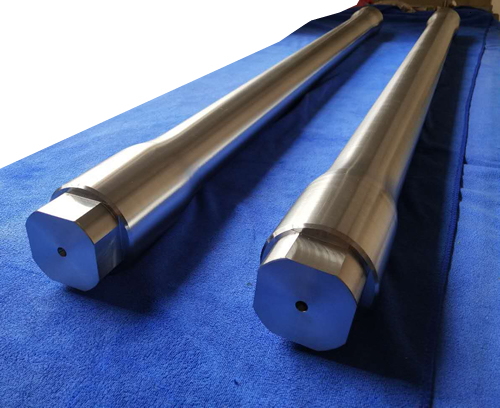

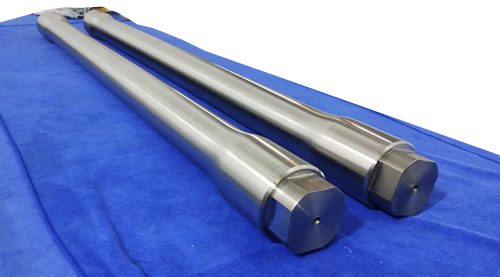

Titanium forging shaft for petroleum equipment

Titanium forging shaft for petroleum equipment is 172 titanium screw drill, Titanium Grade5 for oil drilling tool. The raw material of titanium rod has been pulled out for three times.
Size: Φ85mm×Length1300mm;
Standard: AMS4928;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Products Name	Titanium forging shaft for petroleum equipment.
Specification	Φ85mm×Length1300mm
Material	Titanium Grade5
Standard	AMS 4928

Standard	Werkstoff No.	UNS
Titanium Alloy Grade5 Ti-6Al-4V	3.7165	R56400

Technical Data Sheet

Chemical Composition
Weight %	Ti	Al	V	C	Fe	N	O	H
Titanium Alloy Grade5 Ti-6Al-4V	Balance	5.5~6.75	3.5~4.5	0.08	0.4	0.05	0.2	0.015
Testing Value	Balance	6.08	4.09	＜0.009	0.136	＜0.013	0.113	0.0011

Typical Mechanical Properties (Tensile Requirements)

Material	Tensile Strength, min		Yield Strength (0.2% Offset) min or range		Elongation in 4D,min%
Material	ksi	MPa	ksi	MPa	Elongation in 4D,min%
Titanium Alloy Grade5 Ti-6Al-4V	130	895	120	828	10
Testing Value	~	1025	~	946	11.8
Testing Value	~	1003	~	992	12.5
