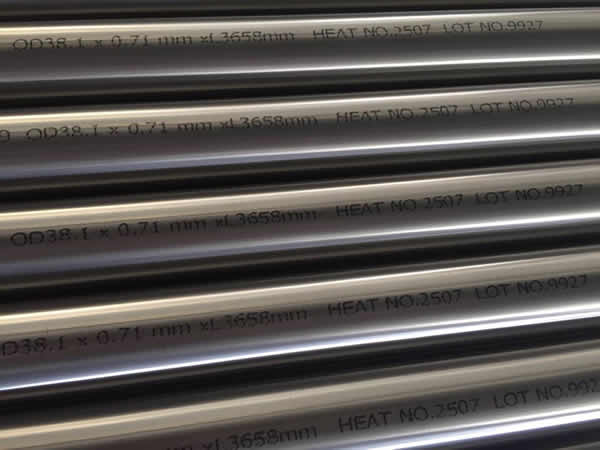

Titanium tubes for Aerospace and Airplane

Goolee can provide some of the common sizes produced for major aircraft companies. Sizes other than those shown can be produced depending on the quantity required.
Titanium Grade: Grade9 Ti3Al2.5V;
Size: Outer Diameter6.4mm~38.1mm×Wall Thickness0.41~1.37mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Listed in the following table are some of the common sizes produced for major aircraft companies. Sizes other than those shown can be produced depending on the quantity required. SEAMLESS TITANIUM TUBES FOR AMS 4944L GR.9

Outside Diameter	Wall Thickness		Outside Diameter	Wall Thickness
in (mm)	in (mm)		in (mm)	in (mm)
1/4 (6.4)	0.016	0.41	3/4 (19.1)	0.020	0.51
	0.020	0.51		0.028	0.71
	0.028	0.71		0.035	0.89
	-	-		0.039	0.99
	-	-		0.054	1.37
	-	-		0.081	2.06
3/8 (9.5	0.019	0.48	7/8 (22.2)	0.028	0.53
	0.022	0.56		0.032	0.71
	0.028	0.71		0.035	0.89
	0.035	0.89		0.049	1.24
	0.042	1.07		0.061	1.55
1/2 (12.7)	0.023	0.58	1 (25.4)	0.021	0.53
	0.026	0.66		0.028	0.71
	0.028	0.71		0.035	0.89
	0.036	0.91		0.051	1.30
	0.056	1.42		0.070	1.78
	-	-		0.073	1.85
5/8 (15.9)	0.023	0.58	11/4 (31.8)	0.028	0.71
	0.028	0.71		0.032	0.81
	0.032	0.81		0.035	0.89
	0.035	0.89		0.040	1.02
	0.044	1.12		0.065	1.65
	0.049	1.24		0.087	2.21
-	-	-	1 1/2 (38.1)	0.035	0.89
-	-	-	1 1/2 (38.1)	0.054	1.37
