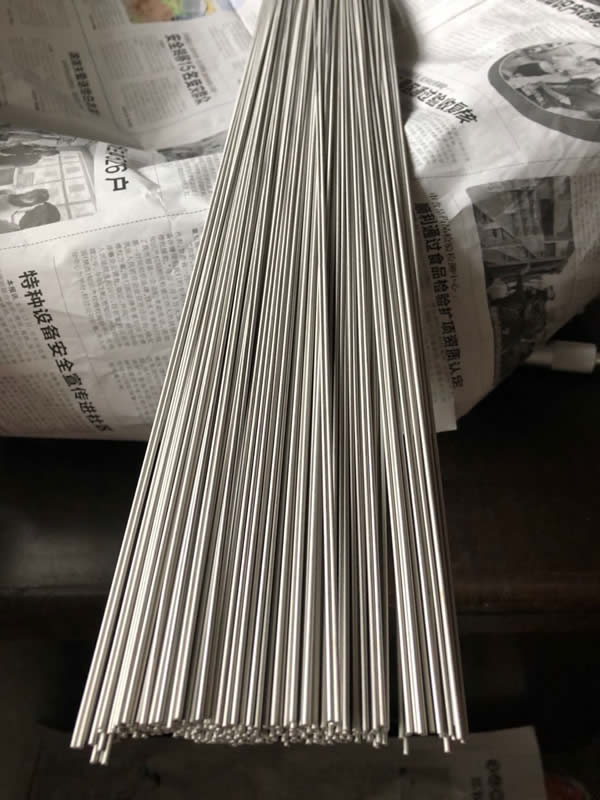

Commercial Pure Titanium Grade 3 Wire

1.Titanium Alloy Grade 3 is “unalloyed” titanium offering improved strength,moderate ductility, and ASME Code design allowables. The material is readily weldable.
2.This material is very corrosion resistant in highly oxidizing and mildly reducing environments.
3.Size: Φ0.1mm~Φ7mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Titanium Alloy Grade 3 is “unalloyed” titanium offering improved strength, moderate ductility, and ASME Code design allowables. The material is readily weldable. This material is very corrosion resistant in highly oxidizing and mildly reducing environments.

Standard Specification: ASTM B863, ASME SB863, ASTM F67, ISO, DIN AMS-T-9046 CP4 / AMS 4940;

Standard	Werkstoff No.	UNS
Commercial Pure Titanium Grade3	3.7055	R50550

Technical Data Sheet

Chemical Composition
Weight %	Ti	C	Fe	N	O	H
Commercial Pure Titanium Grade3	Balance	0.08	0.3	0.05	0.35	0.015

Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Commercial Pure Titanium Grade3

450

380

Commercial Pure Titanium Grade 3 Wire
