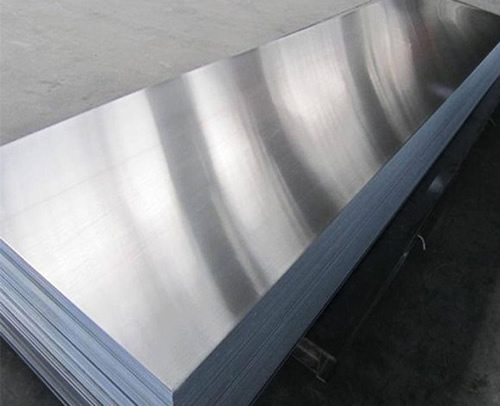

Aluminum white copper plate

Cupronickel is a copper alloy with nickel as the main alloy. Cupronickel rods based on copper-nickel alloy with third elements such as zinc, manganese, aluminum, etc., are correspondingly called zinc cupronickel rods, manganese cupronickel rods, and aluminum cupronickel etc.

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Hard Condition: M (soft state), Y2 (1/2 hard), Y (hard);

Size: Thickness0.5mm~80mm×Width10mm~1200mm×Length2000mm~mm;

Grade comparison table

China	ISO	USA	British	France	Germany	Japan
BAI13-1	MHA13-3	~	~	~	~	~
BAI6-1.5		~	~	~	~	~

Chemical composition table

Alloy Grade

Ni+Co

Total impurities

BAl3-3

12.0~15.0

1.0

0.50

2.3-3.0

0.003

0.01

Balance

1.9

BAl6-1.5

5.5-6.5

0.50

0.20

1.2-1.8

0.003

Balance

1.1

Grades, characteristics and applications;

Alloy Grade	Main features	Application examples
BAl13-3	It is a structural copper-nickel alloy that can be heat-treated. Its characteristics are: in addition to high strength (the highest strength in cupronickel) and corrosion resistance, it also has high elasticity and corrosion resistance, and its mechanical properties at low temperatures (90K) Not only does it not decrease, but it improves somewhat, which is a performance that other copper alloys do not	Used to make high-strength corrosion-resistant parts
BAl6-1.5	It is a structural copper-nickel alloy, which can be strengthened by heat treatment, with high strength and good elasticity	Making flat springs for important purposes
