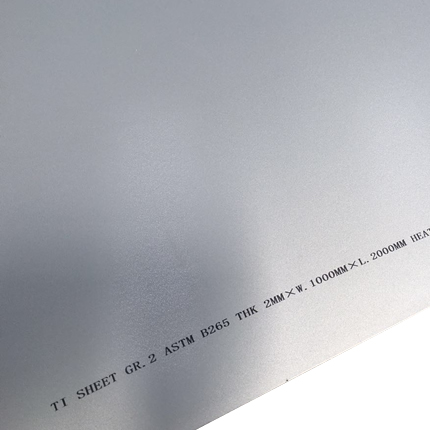

Commercial Pure Titanium Grade 2 Sheet and Plate

1.Titanium Alloy Grade 2 is “unalloyed” titanium offering an excellent balance of strength and ductility.
2.The material has good toughness and is readily weldable. This material is very corrosion resistant in highly oxidizing and mildly reducing environments.
3.Size: Thickness0.3~60mm×Width400~3000mm×Length1000~6000mm;
Products Inquiry

Product Details

Titanium Alloy Grade 2 is “unalloyed” titanium offering an excellent balance

of strength and ductility. The material has good toughness and is readily weldable. This material is very corrosion resistant in highly oxidizing and mildly reducing environments.

Standard Specification: ASTM B265 , ASME SB265, ASTM F67, AMS-T-9046B CP4 AMS 4940 MIL-T-9046J CP4



Standard

Werkstoff No.

UNS

Commercial Pure Titanium Grade2

3.7035

R50400



Technical Data Sheet

Chemical Composition

Weight %

Ti

C

Fe

N

O

H

Commercial Pure Titanium Grade2

Balance

0.08

0.3

0.03

0.25

0.015



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Commercial Pure Titanium Grade2

50

345

40

275

20

30
