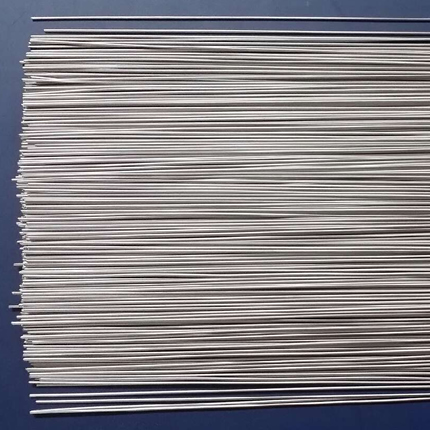

Medical Titanium and Titanium alloy Wire

1.Titanium wire for Neurosurgery Implants Kirschner Wire and For X-ray Photography;
2.Size: Φ0.8mm, Φ1.0mm, Φ1.5mm; Φ2.0mm; Φ2.5mm; Φ3.0mm; Φ3.5mm; Φ4.0mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

1. Titanium wire for Neurosurgery Implants Kirschner Wire

Specification (mm)	Φ0.8mm, Φ1.0mm, Φ1.5mm; Φ2.0mm; Φ2.5mm; Φ3.0mm; Φ3.5mm; Φ4.0mm
Length (mm)	1000~3000
Standards:	GB/T13810, ASTM F136, ISO5823-3, ASTM F1295, ISO5832-11
Titanium Grade	Gr5, Ti6Al4V, Ti6Al7Nb
Surface Finish	Polished;
Tolerance (mm)	-/+0.01
Feature:	Superior corrosion resistance, high elasticity, high tensile strength

Standard	Grade	Chemical Composition
		Major Composition				Impurity （≤%）					Residual Elements
		Ti	Al	V	Nb	Fe	C	N	H	O	Single
GB/T13810	TA1	Balance	/	/	/	0.2	0.08	0.03	0.015	0.18
	TA2	Balance	/	/	/	0.3	0.08	0.03	0.015	0.25
	TA3	Balance	/	/	/	0.3	0.08	0.05	0.015	0.35
	TA4	Balance	/	/	/	0.5	0.08	0.05	0.015	0.4
	TC4	Balance	5.5~6.75	3.5~4.5	/	0.3	0.08	0.05	0.015	0.2
	TC4ELI	Balance	5.5~6.75	3.5~4.5	/	0.25	0.08	0.03	0.012	0.13
GB/T23102	Ti6Al7Nb	Balance	5.5~6. 5	/	6.5~7.5	0.25	0.08	0.05	0.009	0.2
ASTM	Ti6Al7Nb	Balance	5.5~6. 5	/	6.5~7.5	0.25	0.08	0.05	0.009	0.2
ASTM F136	Ti6Al4VELI	Balance	5.5~6.75	3.5~4.5	/	0.25	0.08	0.05	0.012	0.13
ASTM F67	Grade1	Balance	/			0.2	0.08	0.03	0.015	0.18
	Grade2	Balance	/			0.3	0.08	0.03	0.015	0.25
	Grade3	Balance	/			0.3	0.08	0.05	0.015	0.35
	Grade4	Balance	/			0.5	0.08	0.05	0.015	0.4
ISO5832-2:1999	Grade 1 ELI	Balance	/			0.1	0.03	0.012	0.012	0.1
	Grade 1	Balance	/			0.2	0.1	0.03	0.012	0.18
	Grade 2	Balance	/			0.3	0.1	0.03	0.012	0.25
	Grade 3	Balance	/			0.3	0.1	0.05	0.012	0.35
	Grade4&4B	Balance	/			0.5	0.1	0.05	0.012	0.4
ISO5832-3:1996	Ti6Al4V	Balance	5.5~6.75	3.5~4.5	/	0.3	0.08	0.05	0.015	0.2
ISO5832-11	Ti6Al7Nb	Balance	5.5~6. 5	/	6.5~7.5	0.25	0.08	0.05	0.009	0.2

Titanium alloy Grade 7 Ti-0.2Pd Wire

Titanium Alloy Grade 7 with 0.1% palladium is similar to Grade 2, but with improved resistance to general and localized crevice corrosion in a wide range of reducing acid environments, inclu

Commercial Pure Titanium Grade 4 Wire

Titanium Alloy Grade 4 is “unalloyed” titanium offering optimum ductility and cold formability. The material has high impact toughness and is readily weldable. The material is capable o

Titanium Alloy Grade23 Ti-6Al-4VELI (Extra low interstitials) Wire

Ti-6Al-4V alloy is the most widely used titanium alloy of the alpha-plus beta class, and is also the most common of all titanium alloys. This modification incorporates extra low interst

Commercial Pure Titanium Grade 2 Wire
