Titanium and Titanium alloy Mesh

1. Mesh Wire Diameter: Φ0.05mm~Φ6mm;
Width1000mm×Length2000mm or Coilmm;
2. Mesh 10~200mesh;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Weave Pattern:

Plain weave, twill weave, dense weave;
Titanium mesh performance:
Corrosion resistance is better
Pure titanium screen long service life, safe and reliable operation

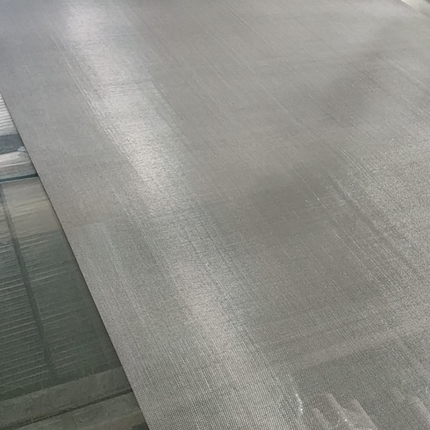

Titanium wire mesh is woven from titanium wire; we can supply commercial pure titanium and various titanium mesh. It can be used for screening and filtration in acidic and alkaline environments, gas-liquid filtration and other environments. Our titanium mesh has stable filtration characteristics.

Titanium mesh is made of Titanium Wire while the expanded and perforated mesh is made by expanding and punching the metal sheet respectively. Titanium wire mesh is used in several industries such as aerospace, medical and electric industry.

No.	Specification
Material	Titanium Wire Gr1, Gr2, Gr5, Gr7 Dia.: 0.05mm-10.0mm CP Ti Dia.: 0.5mm-10.0mm Alloyed Ti	Black CP Ti Wire (ASTM B863)	Shipbuilding and seawater filtration, etc.
		Polished CP Ti Wire (ASTM B863)	Making electrode and current collection grid, fine chemicals filtration
		Medical Ti Wire (ASTM F136)	Making Medical Parts and equipment
Mesh	1-100 mesh Aperture rate:10%-90% Size: 10mm-2000mm Width × Length
Processing	Plain Weave and Twill Weave
Properties	Acid and Alkali resistance, High strength High-temperature resistance, and wear resistance.
Application	Used in acid and alkali environment, as a sieve in the petroleum industry and chemical fiber industry, pickling in electroplating industrial, food, medicine, machinery manufacturing, and other industries
