You are here:
Home > Products > Tungsten and Tungsten alloys Sheet and Plate

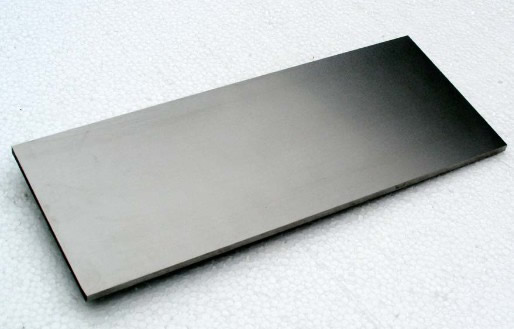

Tungsten and Tungsten alloys Sheet and Plate

GOOLEE provide tungsten plates with purity W ≥ 99.95%, which are widely used in ion implantation, sputtering and coating, medical CT, electronics and vacuum equipment.

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Surface treatment:
Hot-rolled Alkaline Cleaning Surface
Electrolytic Polish Surface
Cold-rolled Surface
Machined Surface
Polished
Properties:
High Temperature Resistance
High Hardness
High Density
Application:
Parts of Electric Light Source and Electron Tube
Medical Facilities
Obstruction of Radiation and Interference
Heat Shields of High Temperature Furnace
Heat Elements of High Temperature Furnace
Structures of High Temperature Furnace
Evaporation Boats

Specifications:

Product Name	Tungsten Plate/Tungsten Sheet
Item No.	PT74-TP/PT74-TS
Purity	W ≥ 99.95%
Process	Rolling

Tungsten Sheet Dimensions (Max, mm)

Thickness	Width	Length
0.05-0.1	100	L
0.10-0.15	100	200
0.15-0.20	205	1000
0.20-0.25	300	1000
0.25-0.30	330	1000
0.30-0.50	350	1000
0.50-0.80	330	1000
0.80-1.0	330	1000
1.-1.50	300	1000
1.50-3.0	300	1000
>3.0	300	L

Tungsten Polished Plate Dimensions (Max, mm)

Thickness	Width	Length
1.5-2.0	150	200
2.0-3.0	200	250
3.0-4.0	250	600
4.0-6.0	300	600
6.0-8.0	300	800
8.0-10.0	300	750
10.0-14.00	200	650
>14.0	200	500
