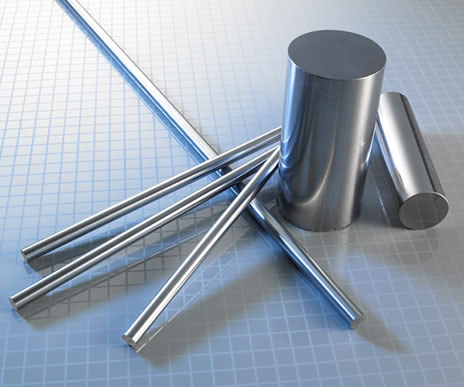

Molybdenum and Molybdenum alloys Bar and Rod

Product name: Molybdenum Bar and Rod
Standard: ASTM B387
Material: Mo >99.95%
Density: 9.8 ~ 10.2g/cc
Products Inquiry

Product Details

Application:

Molybdenum bar is mainly used in drawing thin molybdenum wire, molybdenum electrode and steel-making additives. Meanwhile, molybdenum bar is also widely used in the furnace industry for radiation screens, elements, and sintering trays

Surface Finish:

Black Surface - Surface is "as swaged" or "as drawn"; retaining a coating of processing lubricants and oxides.

Cleaned - Surface is chemically cleaned to remove all lubricants and oxides.

Shiny finish - Surface is lathe shinny or polished.

Spray sand surface



Specification:

Molybdenum round bar is manufactured as random length pieces or cut to customers' desired lengths in diameters ranging from 0.080 inches to 6.00 inches. Please view Molybdenum Rod to see our standard sizes of round bar. Below are most of the standard sizes of our molybdenum rectangular bars. If you do not see the size of molybdenum bar that you require, please feel free to contact us.

Width

Thickness

Length

Length Tolerance

15mm

15mm

600mm

+1mm, -0

20mm

20mm

1000mm

+1mm, -0

45mm

45mm

1200mm

+2mm, -0

60mm

60mm

1500mm

+3mm, -0



Diameter

Length

Diameter Tolerance

Length Tolerance

0.08" ~ 0.40"

< 315"

±0.005"

+0.08", -0

0.40" ~ 0.80"

< 118"

±0.010"

+0.08", -0

0.80" ~ 4.00"

< 78"

±0.015"

+0.08", -0

>4.00"

< 40"

±0.025"

+0.08", -0





Composition:

Grade

The impurity content is not more than %

Fe

Ni

Al

Si

Mg

C

N

O

Mo-1

0.01

0.005

0.002

0.01

0.005

0.01

0.003

0.008

Mo-2

0.01

0.005

0.005

0.01

0.005

0.01

0.003

0.02
