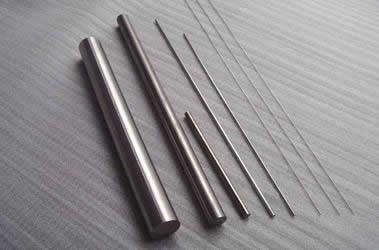

Niobium and Niobium Alloys Rod and Wire

Niobium is an off-white metal with a melting point of 2468°C, a boiling point of 4742°C, and a density of 8.57g/cm3. Niobium is a shiny gray metal with Para magnetism. High-purity niobium metal has high ductility, but it will become harder with increasing impurity content. The arrangement of its outermost electron layer is very different from other Group 5 elements. Niobium exhibits superconductor properties at low temperatures. Niobium has a very low capture cross section for thermal neutrons, so it is quite useful in the nuclear industry.

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

1. Specification: RO4200-1，RO4210-2

2. DiameterSize:Φ0.3mm~Φ100mm;

3. Standard:ASTM B 392 -18

4. Chemical Composition

Chemical Compositions

Content％
Niobium Grade	Main Compositions		Other Elements Max.
Niobium Grade	Nb	Fe	Si	Ni	W	Mo	Ti	Ta	O	C	H	N
Nb1	Balance	0.004	0.004	0.002	0.005	0.005	0.002	0.05	0.012	0.0035	0.0012	0.003
Nb2	Balance	0.01	0.01	0.005	0.02	0.01	0.004	0.07	0.015	0.0050	0.0015	0.008

Niobium Grade	Rm Tensile Strength Min. Lb/inch2（MPa）	Yield Strength Min. Lb/inch2（MPa）	Elongation %
Rod and Bar，Diameter0.125inch(3.18mm) to2.5inch(63.5mm)
RO4200-1	18000(125)	12000(85)	25
RO4210-2	18000(125)	12000(85)	25
Wire，Diameter0.012inch(0.3048mm)to0.124inch(3.15mm)
1 and2 Type	18000(125)	......	20
3 and4Type	28000(195)	......	15
