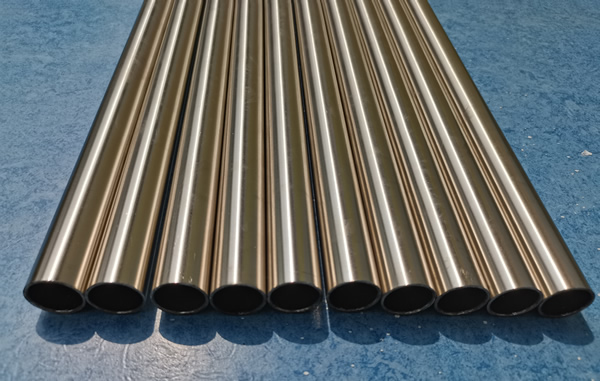

Niobium and Niobium Alloys Tubes and Pipes

Niobium tubes can be used for liquid rocket propulsion nozzles, such as the main engine of the Apollo lunar module. The Apollo service cabin uses another niobium alloy. Since niobium will start to oxidize above 400°C, in order to prevent it from becoming brittle, a protective coating must be applied to its surface.

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

1． Niobium and Niobium Alloys Grade: RO4200-1，RO4210-2

2. Specification: Diameter Size: ODΦ2mm~Φ100mm; Wall Thickness 0.2~5mm×Length200~8000mm;

3. Standard: ASTM B394-18

Chemical Composition

Content %
Niobium Grade	Main Composition	The impurity content is not more than
Niobium Grade	Nb	Fe	Si	Ni	W	Mo	Ti	Ta	O	C	H	N
Nb1	Balance	0.004	0.004	0.002	0.005	0.005	0.002	0.07	0.015	0.004	0.0015	0.003
Nb2	Balance	0.01	0.01	0.005	0.02	0.01	0.004	0.10	0.02	0.01	0.0015	0.008
If the user has special requirements, the two parties specifically negotiate

Niobium Grade

Rm Tensile Strength Min. Lb/inch2（MPa

Yield Strength Min. Lb/inch2（MPa）

Elongation %

RO4200-1

RO4210-2

18000 (125)

8500(59)

If there are special requirements, the two parties will make specific agreement.
