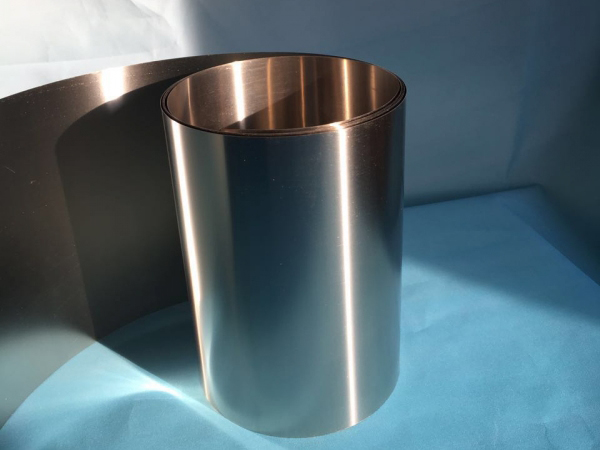

Commercial Pure Zirconium UNS R60702 Foil

1.Commercially pure Zirconium UNS R60702,
2.Zirconium has excellent corrosion resistance to various acids, alkalis and salts;
3.Size:Thickness0.01~0.13mm×Width500~1000mm×Length500mm

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Standard:ASTM B551, ASME SB551; ASTM B352 ;ASTM B523;ASTM B747

Standard	Werkstoff No.	UNS
Commercial Pure Zirconium UNS R60702	~	R60702

Technical Data Sheet

Chemical Composition
Weight %	Zirconium + Hafnium, min	Hafnium, max	Iron + Chromium, max	Tin	Hydrogen, max	Nitrogen, max	Carbon, max	Niobium (Columbium)	Oxygen, max
Commercial Pure Zirconium UNS R60702	99.2	4.5	0.2	~	0.005	0.025	0.05	~	0.16

Typical Mechanical Properties (Tensile Requirements)

Material	Tensile Strength, min		Yield Strength (0.2% Offset) min or range		Elongation in 4D,min%
Material	ksi	MPa	ksi	MPa	Elongation in 4D,min%
Commercial Pure Zirconium UNS R60702	55	379	30	207	16

Zirconium Alloys UNS R60706 Foil

Standard: ASTM B551, ASME SB551; ASTM B352 ;ASTM B523;ASTM B747； Standard Werkstoff No. UNS Zirconium Alloy UNS R60706

Zirconium Alloys UNS R60705 Foil

Standard: ASTM B551, ASME SB551; ASTM B352 ;ASTM B523;ASTM B747 Standard Werkstoff No. UNS Zirconium Alloy UNS R60705

Zirconium Alloys UNS R60704 Foil

Standard: ASTM B551, ASME SB551; ASTM B352 ;ASTM B523;ASTM B747 Standard Werkstoff No. UNS Zirconium Alloy UNS R60704

Commercial Pure Zirconium UNS R60700 Foil
