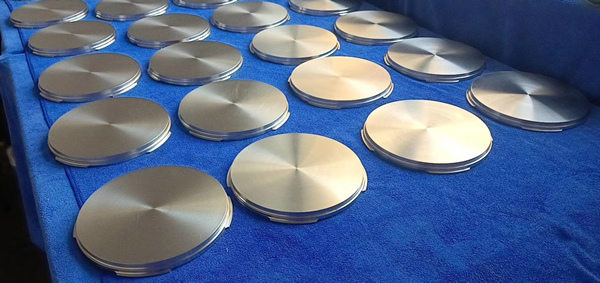

Zirconium Forging Disc

Standard

ASTM B493, ASME SB493

Zirconium Grade

Zirconium

UNS R60700; UNS R60702; UNS R60704; UNS R60705; UNS R60706

Dimension

Thickness (1mm-500mm) × Outside diameter (max.600mm) DN10--DN2000

surface condition

Surface quality: The surface roughness Ra of the two end surfaces should not be greater than 3.2lμm (which meets the requirements of ultrasonic inspection), and the surface roughness Ra of the inner and outer sides should not be greater than 12.5μm (when ultrasonic inspection is required on the outer circumferential surface Ra should not be greater than 3.2 μm), and the chamfer radius is 5 to 15 mm. Surface finish: clean, dust-free, better acid-resistant life.

Types

Testing: mechanical properties, chemical composition testing, ultrasonic testing.

Application

1. Electroplating;

2. Chemical engineering & Petrochemical technology;

3.Use in semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) display and optical applications
