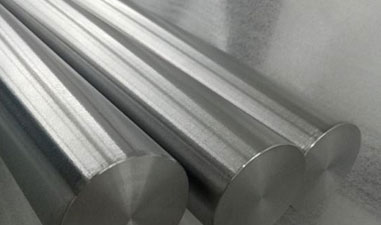

1.5Zirconium Alloys UNS R60706 Bar and Rod

1.UNS R60706 (Zirconium-Niobium alloy): Zr-2.5%Nb, Zr+Hf≥95.5, O≤0.16;
2.Zirconium has excellent corrosion resistance to various acids, alkalis and salts;
3.Size: Φ7mm~Φ150mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Standard:ASTM B550, ASME SB550; ASTM B551, ASME SB551;

Standard	Werkstoff No.	UNS
Zirconium Alloy UNS R60706	~	R60706

Technical Data Sheet

Chemical Composition
Weight %	Zirconium + Hafnium, min	Hafnium, max	Iron + Chromium, max	Tin	Hydrogen, max	Nitrogen, max	Carbon, max	Niobium (Columbium)	Oxygen, max
Zirconium Alloy UNS R60706	95.5	4.5	0.2	~	0.005	0.025	0.05	2.0~3.0	0.16

Typical Mechanical Properties (Tensile Requirements)

Material	Tensile Strength, min		Yield Strength (0.2% Offset) min or range		Elongation in 4D,min%
Material	ksi	MPa	ksi	MPa	Elongation in 4D,min%
Zirconium Alloy UNS R60706	74	510	50	345	20
