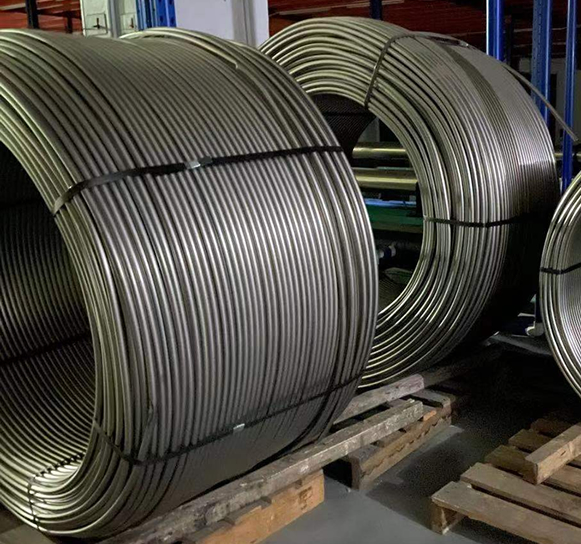

Zirconium and Zirconium Alloy tube in Coils

Titanium tube in Coils are used heat-exchangers products etc.
Size: OD2~168mm ×Wall Thickness 0.3~10mm×Length2000-12000mm (Cold Rolled and Seamless tube) OD133mm~820mm× Wall Thickness 3~25mm× 1000-3000mm welded tubes ,Or according customer's requirement.
Standard: ASTM B523/B523M-07；ASME SB-523； ASTM B658/B658M-11；ASME SB-658/SB-658M

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

GOOLEE can provideZirconium and Zirconium Alloys tube in Coils can be used all kinds of heat-exchangers;

Standard	UNS
Commercial Pure Zirconium UNS R60700	R60700
Commercial Pure Zirconium UNS R60702	R60700
Zirconium Alloy UNS R60704	R60704
Zirconium Alloy UNS R60705	R60705
Zirconium Alloy UNS R60706	R60706

Technical Data Sheet

Chemical Composition
Weight %	Zirconium + Hafnium, min	Hafnium, max	Iron + Chromium, max	Tin	Hydrogen, max	Nitrogen, max	Carbon, max	Niobium (Columbium)	Sn	Oxygen, max
Commercial Pure Zirconium UNS R60700	99.2	4.5	0.2	~	~	0.025	0.05	~	~	0.16
Commercial Pure Zirconium UNS R60702	99.2	4.5	0.2	~	0.005	0.025	0.05	~	~	0.16
Zirconium Alloy UNS R60704	97.5	4.5	0.2~0.4	~	~	0.025	0.05	~	1.0~2	0.14
Zirconium Alloy UNS R60705	95.5	4.5	0.2	~	0.005	0.025	0.05	2.0~3.4	~	0.18
Zirconium Alloy UNS R60706	95.5	4.5	0.2	~	0.005	0.025	0.05	2.0~3.0	~	0.16

Typical Mechanical Properties (Tensile Requirements)

Material	Tensile Strength, min		Yield Strength (0.2% Offset) min or range		Elongation in 4D,min%
Material	ksi	MPa	ksi	MPa	Elongation in 4D,min%
Commercial Pure Zirconium UNS R60700	55	380	44	305	2
Commercial Pure Zirconium UNS R60702	55	379	30	207	16
Zirconium Alloy UNS R60704	60	415	35	240	14
Zirconium Alloy UNS R60705	80	550	55	380	16
Zirconium Alloy UNS R60706	74	510	50	345	20
